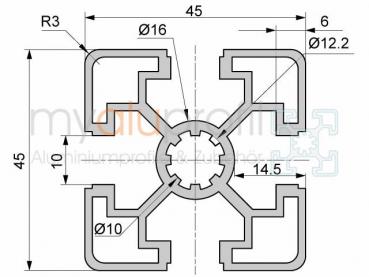

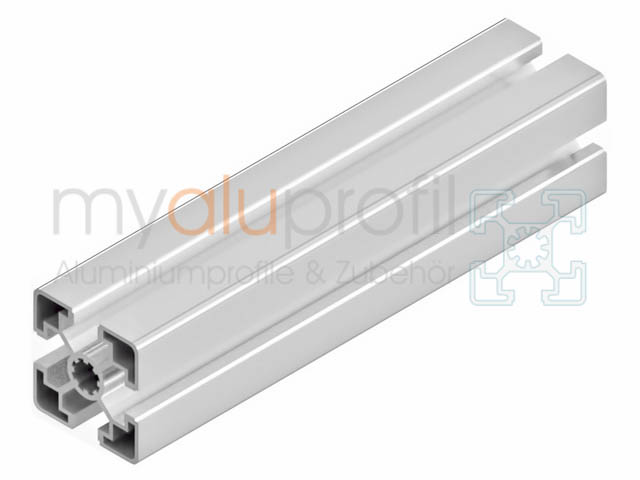

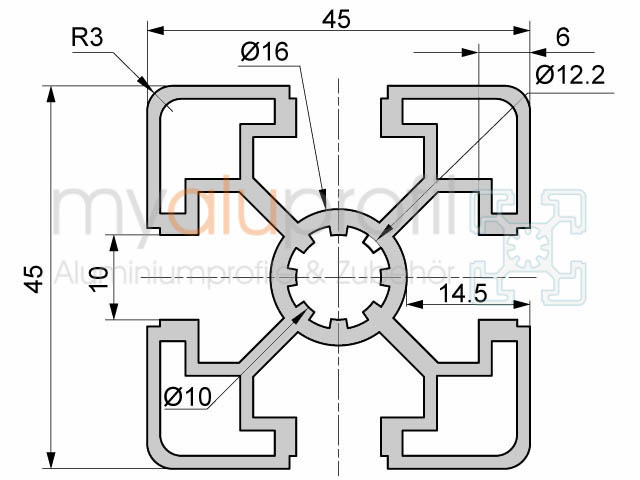

Our strut profile 45x45 mm with groove width 10 mm in light design .
1 Bar with 10 bars á 6040 mm
The profile is anodised and made of aluminium.
Technical data
Material: AlMgSi0.5F25 natural anodised
Moment of inertia I x: 10.82 cm4
Moment of inertia I y: 10.82 cm4
section modulus W x: 4,8 cm³
section modulus W y: 4,8 cm³
Weight kg/m: 1,538
Note
Aluminium profile in natural anodised finish from European production
Can be installed with accessories of the 10 series
Can be combined with all profiles of the 10 series
