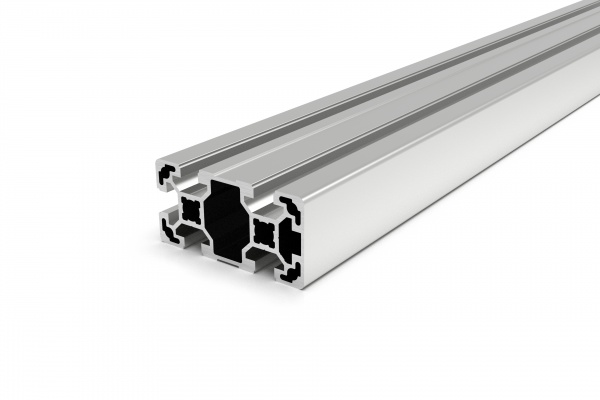

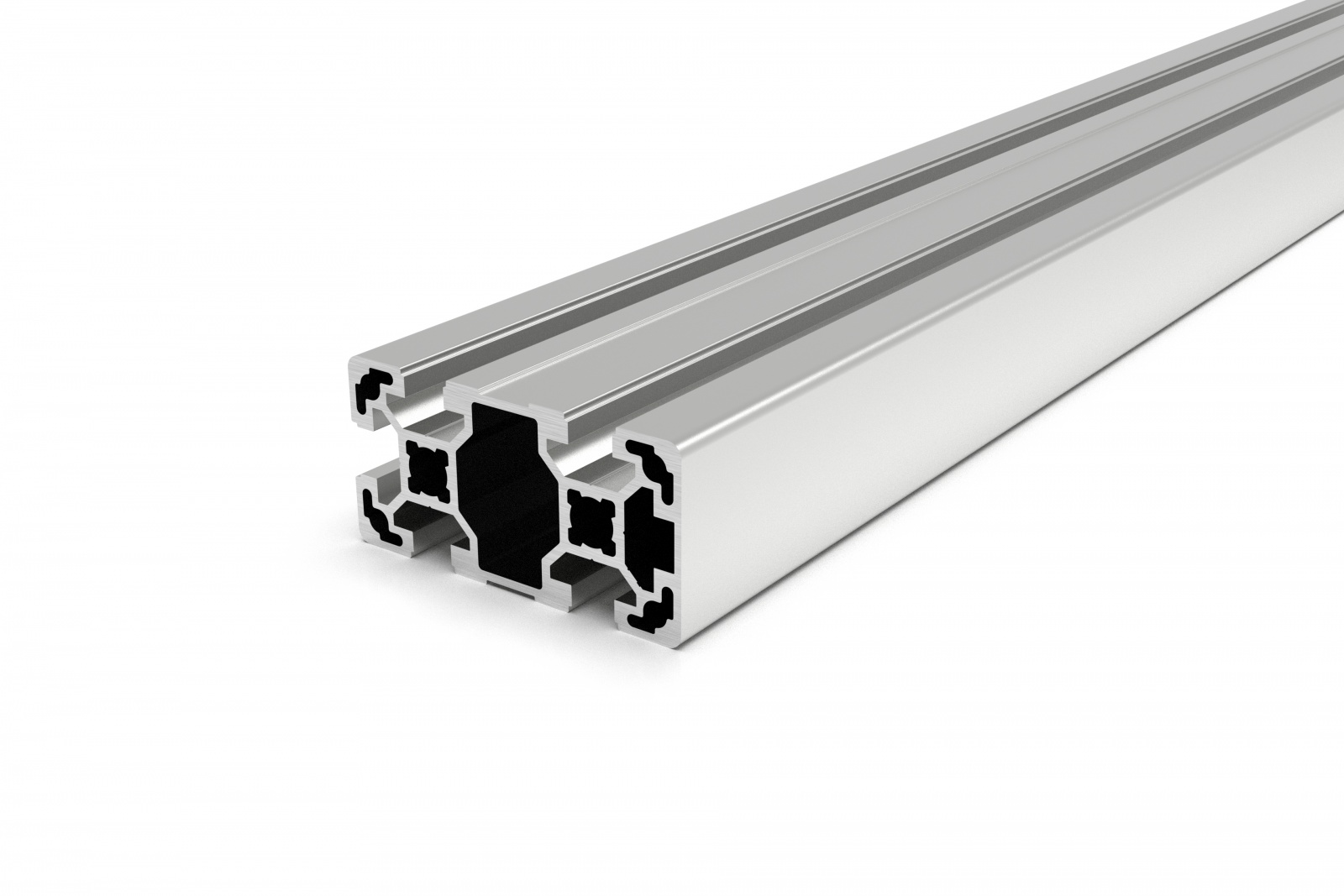

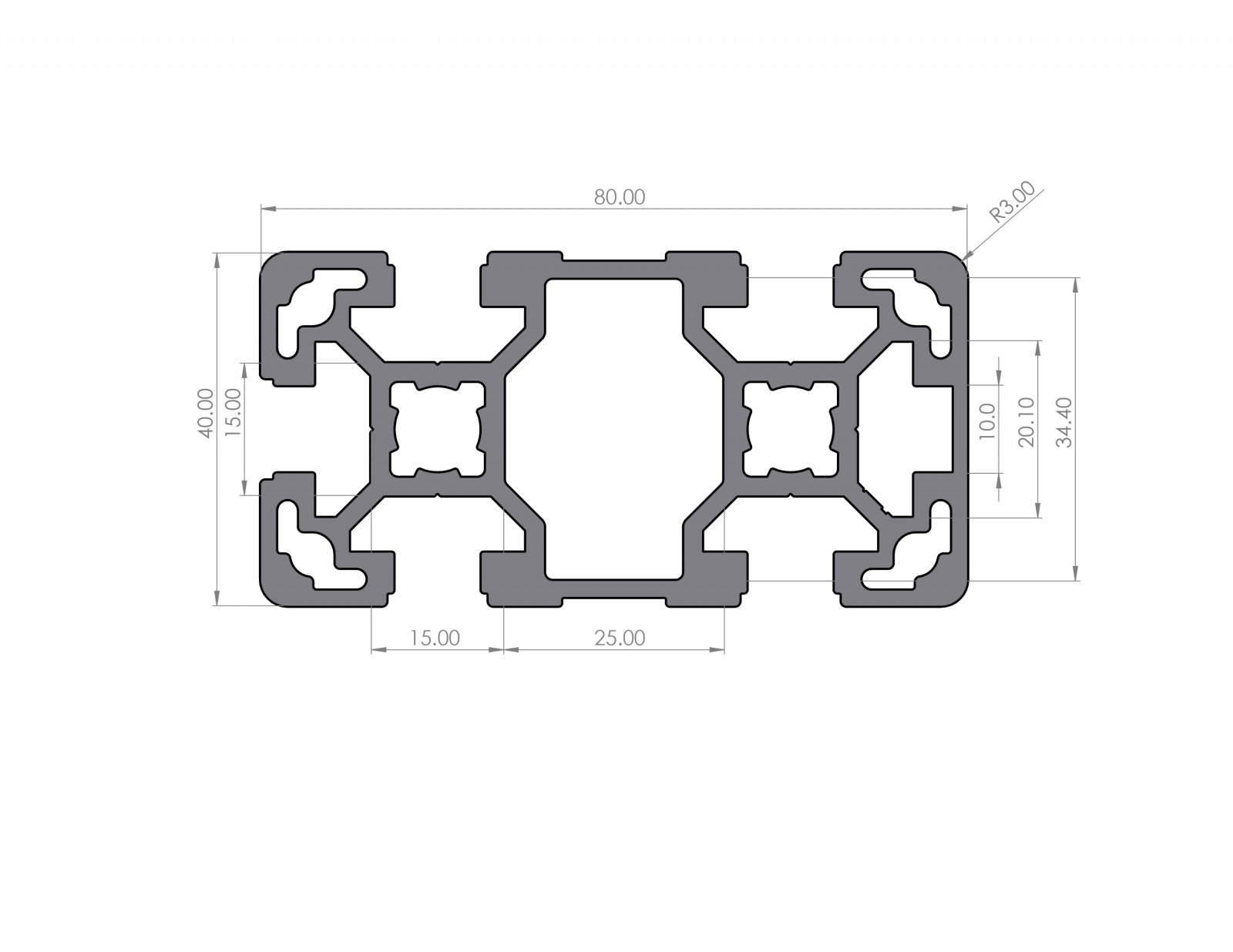

Our strut profile 80x40 mm with groove width 10mm in design 1N.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: ALMgSI 0.5 F25 natural anodised
Moment of inertia I x: 17.53 cm4
Moment of inertia I y: 67.68 cm 4
Resistance torque W x: 8.76 cm³
Resistance torque W y: 16.63 cm³
Weight kg / m: 2,715
Note
Aluminum profile in natural anodised design from European production
Can be installed with accessories of the series 10
Can be combined with all profiles of the 10 series
