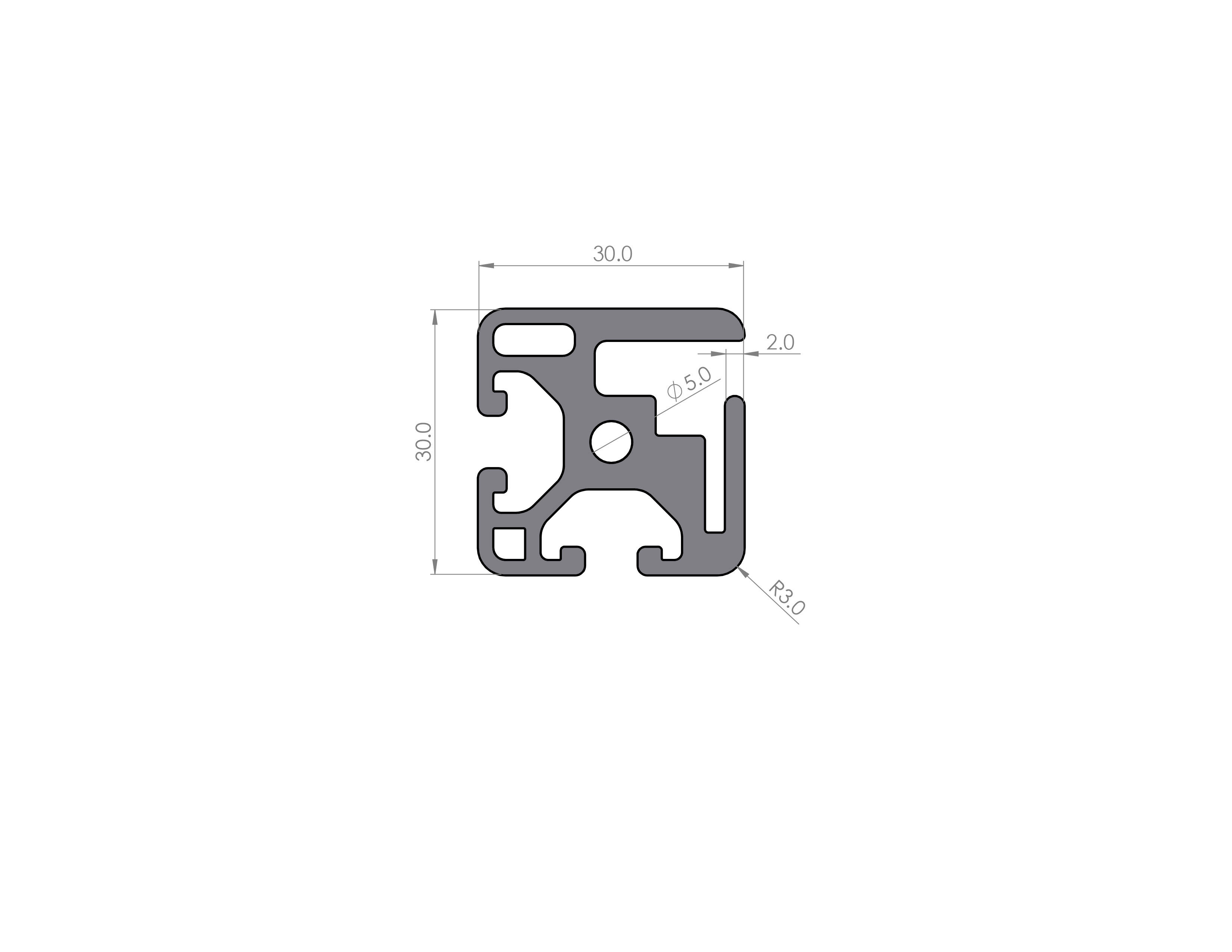

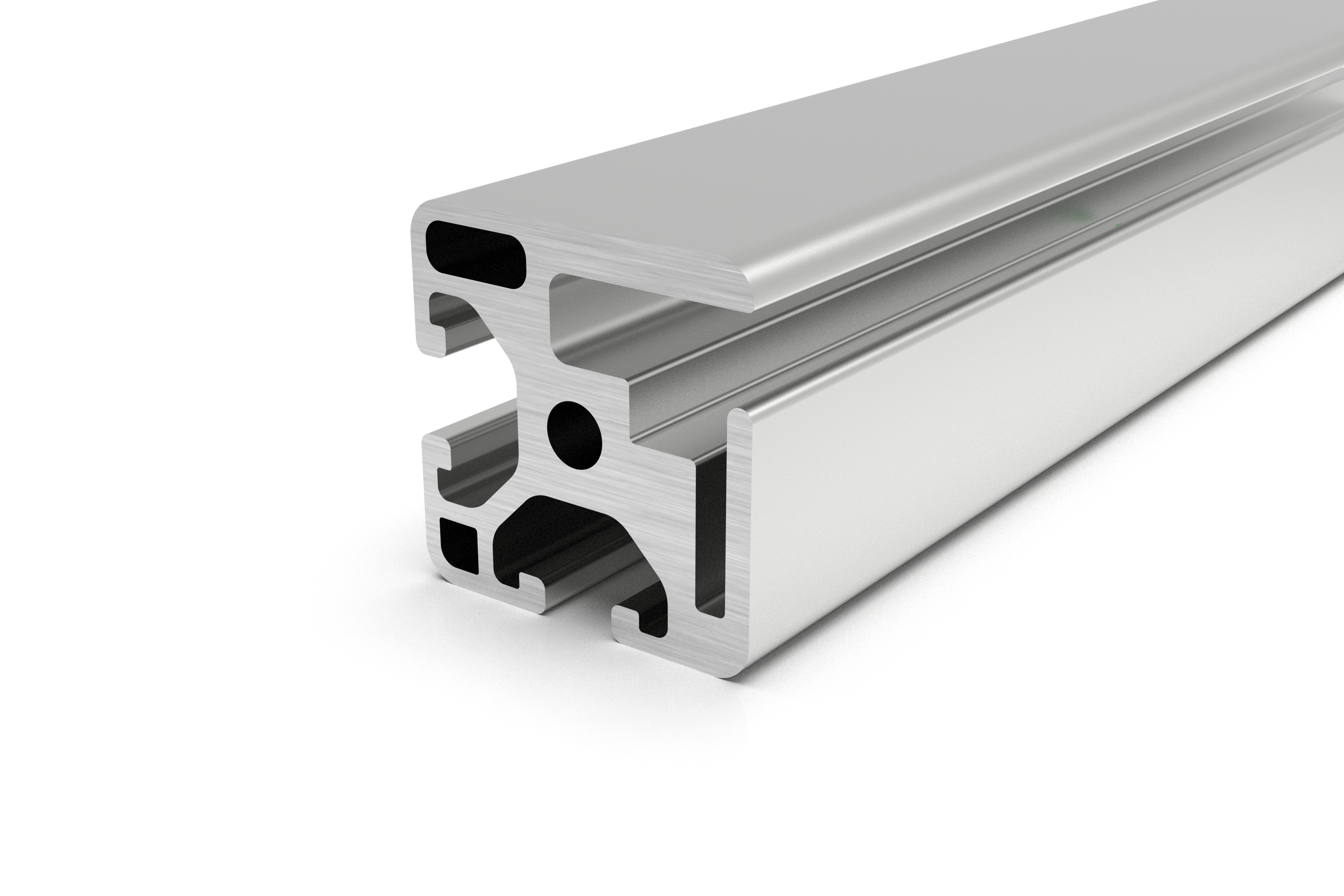

Our clamping profile without bar with groove width 6 mm.
Piece according to desired length in mm
The profile is anodized and made of aluminum.
Technical specifications
Material: AlMgSi0,5F25 natural anodized
Moment of inertia I x: 3.81 cm4
Moment of inertia I y: 2.97 cm 4
Resistance torque W x: 1.89 cm³
Resistance torque W y: 1.5 cm³
Weight kg / m: 1,081
Note
Aluminum profile in natural anodised design from European production
Can be installed with all accessories of the series 6
The scope of supply includes suitable screws for fastening the clamping profile strip
