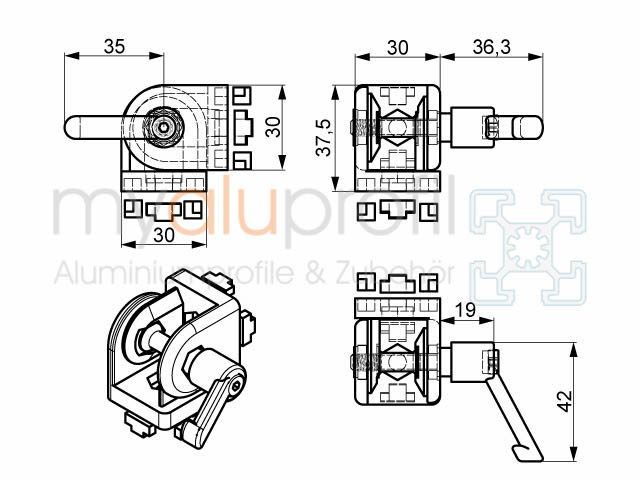

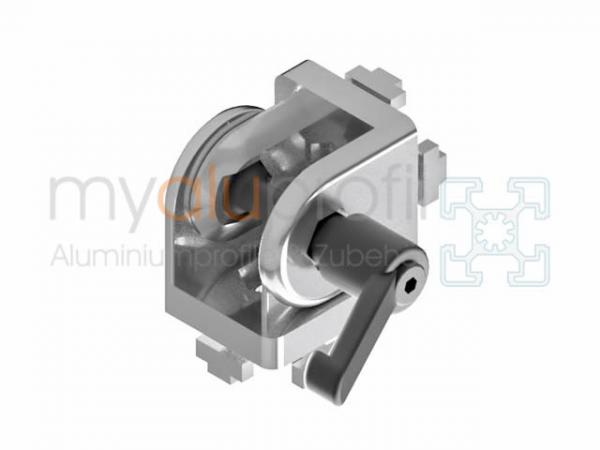

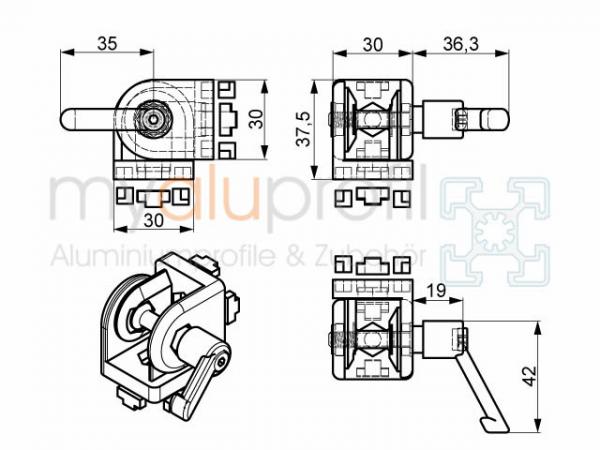

Joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180°. For frontal use, an M6 thread must be cut in the core hole of the profile.
Fastening material for face-side bolting:
2x half-round thread M6x18
Fastening material for screw connection in the profile groove:
2x half-round hex M6x12 + 2x slot nut 6 without web M6
Can be fitted with all profiles of series 6 in 30 I grid type
Mounting must be purchased separately!
Technical data
Material: ZN coated
Weight kg/pce.: 0,170
