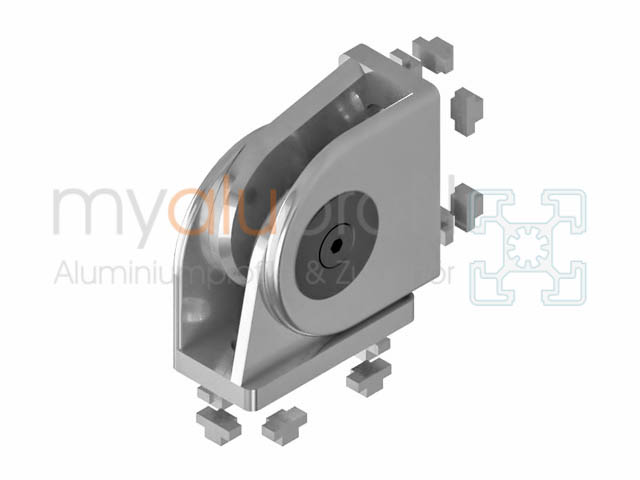

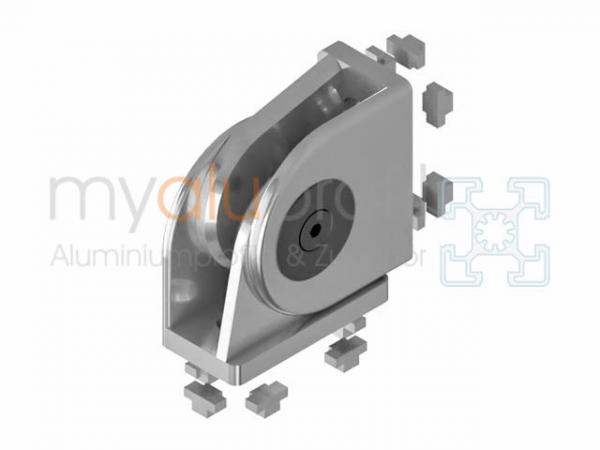

Joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180 °. For face-side use, an M8 thread must be cut in the core hole of the profile.
Mounting material with frontal screw connection:
4x half-round screw M8x25 (H208HS825).
Fastening material when screwed into the profile groove:
4x half-round screw M8x16 (H208HS816) + 4x sliding block 8 without bridge M8 (H208NSOS8).
Can be installed with all profiles of the series 8 of the grid 40.

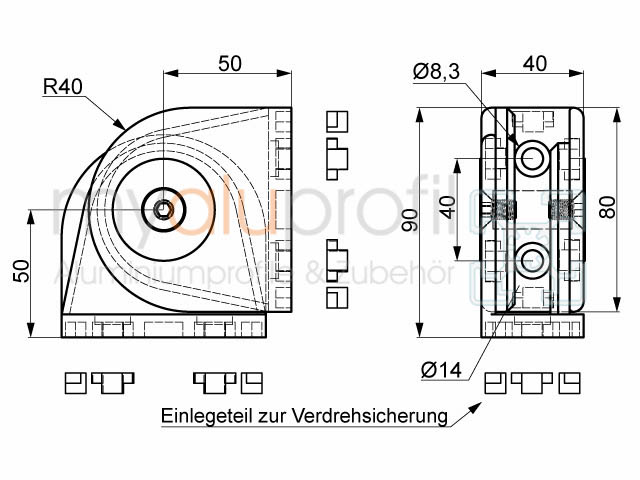

Technical specifications
Material: ZN coated
Weight kg / piece: 0.320
